Aluminum 2A12
Aluminum 2A12 is a highly machinable, high fatigue strength aluminum-copper-magnesium alloy that is heat treatable. Its poor corrosion resistance but can be enhanced with coatings or surface treatments. 🔧
Applications of Aluminum 2A12 include:
✈️ Aerospace Industry: Structural components such as wing ribs, spars, diaphragms, and part rivets for components below 150 degrees Celsius operational temperature.
🚗 Automotive & Transportation: Hubs for trucks, traffic vehicles, and compressors.
🏭 Industrial Use: Aircraft-grade polymer molds, screw-type rotary elements, and ultra-high-strength structural components.
Remember: Aluminum 2A12 performs satisfactorily with spot welding but may fail with other welding methods due to cracking.
Mia Yu has in-depth knowledge in CNC machining, 3D printing, and sheet metal fabrication. She specializes in prototypes, bespoke components, and small-scale manufacturing. Their advanced systems guarantee that your designs are manufactured with unmatched precision.
Mia Yu
CNC Machining Expert
Specifications for Aluminum 2A12
Examine an extensive table of material properties containing physical, mechanical, electrical, and thermal characteristics for comprehensive analysis. This aids in the informed selection and evaluation of materials.
| Category | Details |
|---|---|
| Chemical Composition (%) | Si: ≤0.50, Fe: ≤0.50, Cu: 3.80-4.90, Mn: 0.30-0.90, Mg: 1.20-1.80, Zn: ≤0.30, Ti: ≤0.15, Ni: ≤0.10, Cr: ≤0.10, Al: Remainder |
| Mechanical Properties | Yield Strength: ≥325 MPa, Tensile Strength: ≥472 MPa, Elongation: ≥10%, Hardness: ~120 HB, Fatigue Strength: ~105 MPa |
| Physical Properties | Density: 2770 kg/m³, Elastic Modulus: 68 GPa, Electrical Conductivity: ~30% IACS |
| Available Sizes | Thickness: 0.2 mm to 350 mm, Width: 700 mm to 2500 mm, Length: 1 m to 12 m (custom sizes available) |
| Tempers | F, O, T3, T4, T351, H112, T6, T651, T7351, H14, H24, etc. |
| Key Features | High strength, heat resistance (up to 150°C), excellent machinability, high fatigue strength, requires surface treatment for corrosion resistance |
| Applications | Aerospace (skeleton parts, skin, wing ribs, spars, rivets), Automotive (truck hubs, screw elements), Industrial (molds, compressors, structural parts) |
| Standards Compliance | ASTM B209, EN 573, EN 485 |
| Limitations | Low corrosion resistance (requires coating), prone to intergranular cracks during welding |
Our Blog
View our latest news
Stainless steel remains one of the most important and widely used materials in the design, construction, and manufacturing of products today. With its combination of strength, corrosion resistance, and...
Corrosion can be rather persistent and it will have a creeping effect on your working tools, household appliances and precious items. Those who do not want this to happen...
Understanding sulfuric acid density not only contributes to the field of science and industrial applications, but also helps prevent accidents and ensure accurate use. Due to its extensive use...
Titanium is well known for its extraordinarily high strength-to-weight ratio, making it indispensable in many applications today. Because it offers a lightweight yet strong material that does not corrode,...
One of the most widely used igneous rocks is granite, whose versatility and appeal primarily derive from its distinctive physical properties, most notably its density. Understanding granite density is...
Ice, whether it makes winter streets unpassable, creates the fantastic formations of glaciers, or adds a refreshing sound to a drink in the hot summer, plays an exciting role...
Silicon, the second-most-abundant element in the Earth’s crust, is a modern tech and industrial material. It is used in a wide variety of applications, from electronics to advanced materials;...

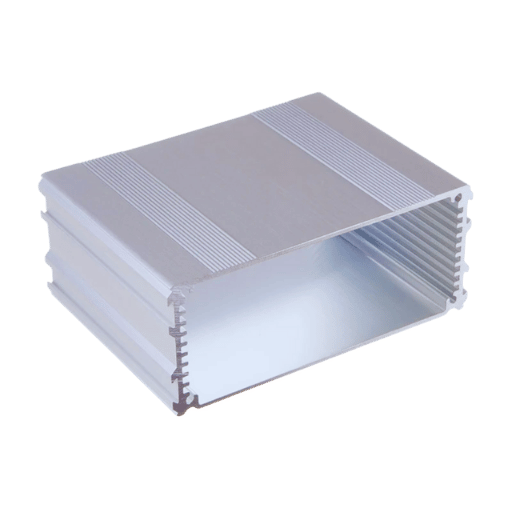

Get 2A12 aluminum CNC machining parts from Baetro
Rely on Baetro to get aluminum 2A12 CNC parts that are machined with precision and catered to your specific specifications. Each component Baetro produces is built to provide unmatched dependability, reliability, and durability which makes the parts exceptionally adaptable for use in aerospace, automotive, engineering, and other sectors. Count on Baetro for tailored solutions that are designed to help advance the goals of your endeavors.
