Aluminum 7075
Aluminium 7075 best exemplifies an alloy that possesses exemplary strength, toughness, and fatigue resistance owing to its unique bulid with zinc is the composition. Put into perspective, it may not do as well in corrosive environments due to stress cracks which occurs more often in aluminium alloys. Regardless, the optimum strength to weight ratio enables it to be benificial across diverse sectors.
Some examples of where you will see Aluminium 7075 being used include:
✈️ Aerospace: Components of aircraft structures
🚗 Automotive: Components which are high-performance and low-weight
🛡️ Defense: Military grade firearms like M16, AR-15 rifles
🎯 Sports: Parts of rock climbing bicycles, archery, and bicycles
🏕️ Recreational: Yo-yos made for competition, camping tools, lacrosse shafts
⚙️ Industrial: Components for drag racing engines and mold tooling
Mia Yu has in-depth knowledge in CNC machining, 3D printing, and sheet metal fabrication. She specializes in prototypes, bespoke components, and small-scale manufacturing. Their advanced systems guarantee that your designs are manufactured with unmatched precision.
Mia Yu
CNC Machining Expert
Specifications for Aluminum 7075
Examine an extensive table of material properties containing physical, mechanical, electrical, and thermal characteristics for comprehensive analysis. This aids in the informed selection and evaluation of materials.
| Category | Property | Metric | English | Notes |
|---|---|---|---|---|
| Chemical Composition | Aluminum (Al) | 87.1 - 91.4% | - | Remainder |
| Chromium (Cr) | 0.18 - 0.28% | - | - | |
| Copper (Cu) | 1.2 - 2.0% | - | - | |
| Zinc (Zn) | 5.1 - 6.1% | - | - | |
| Magnesium (Mg) | 2.1 - 2.9% | - | - | |
| Others (each/total) | Max 0.05% / Max 0.15% | - | - | |
| Physical Properties | Density | 2.81 g/cc | 0.102 lb/in³ | Typical |
| Melting Point | 477 - 635 °C | 890 - 1175 °F | Typical range for wrought products | |
| Mechanical Properties | Hardness (Brinell) | 150 | 150 | 500 g load, 10 mm ball |
| Ultimate Tensile Strength | 572 MPa | 83,000 psi | Typical | |
| Tensile Yield Strength | 503 MPa | 73,000 psi | Typical | |
| Elongation at Break | 11% | 11% | 1/16 in. (1.6 mm) thickness | |
| Fatigue Strength | 159 MPa | 23,000 psi | 500,000,000 cycles | |
| Fracture Toughness (K_IC) | 20-29 MPa-m½ | 18.2-26.4 ksi-in½ | Direction-dependent | |
| Thermal Properties | Thermal Conductivity | 130 W/m-K | 900 BTU-in/hr-ft²-°F | Typical at 77°F |
| Specific Heat Capacity | 0.96 J/g-°C | 0.229 BTU/lb-°F | - | |
| Coefficient of Thermal Expansion | 23.6 µm/m-°C | 13.1 µin/in-°F | 68-212°F range | |
| Electrical Properties | Electrical Resistivity | 5.15e-006 ohm-cm | 5.15e-006 ohm-cm | Typical at 68°F |
| Processing Properties | Annealing Temperature | 413 °C | 775 °F | - |
| Solution Temperature | 466 - 482 °C | 870 - 900 °F | - | |
| Aging Temperature | 121 °C | 250 °F | - | |
| Applications | Aerospace and Defense | Aircraft fittings, gears, shafts, missile parts, regulating valve parts | - | Highly stressed structural parts |
| Automotive and Sports | Bike frames, ATV sprockets | - | - | |
| Industrial | Worm gears, keys, meter shafts | - | - |
Our Blog
View our latest news
Stainless steel remains one of the most important and widely used materials in the design, construction, and manufacturing of products today. With its combination of strength, corrosion resistance, and...
Corrosion can be rather persistent and it will have a creeping effect on your working tools, household appliances and precious items. Those who do not want this to happen...
Understanding sulfuric acid density not only contributes to the field of science and industrial applications, but also helps prevent accidents and ensure accurate use. Due to its extensive use...
Titanium is well known for its extraordinarily high strength-to-weight ratio, making it indispensable in many applications today. Because it offers a lightweight yet strong material that does not corrode,...
One of the most widely used igneous rocks is granite, whose versatility and appeal primarily derive from its distinctive physical properties, most notably its density. Understanding granite density is...
Ice, whether it makes winter streets unpassable, creates the fantastic formations of glaciers, or adds a refreshing sound to a drink in the hot summer, plays an exciting role...
Silicon, the second-most-abundant element in the Earth’s crust, is a modern tech and industrial material. It is used in a wide variety of applications, from electronics to advanced materials;...

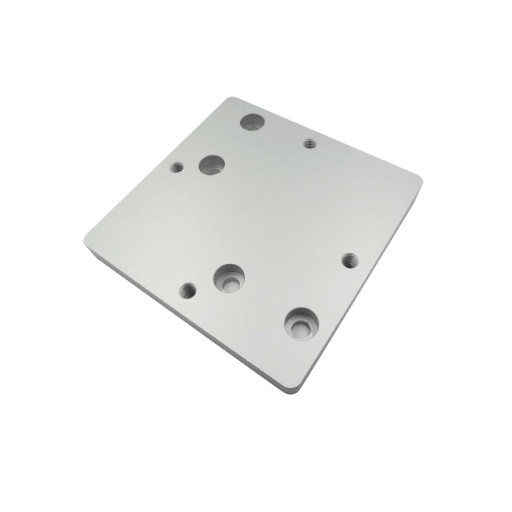

Get Aluminum 7075 CNC machining parts from Baetro
