Stainless Steel 17-4
Stainless Steel 17-4 is a martensitic precipitation hardened stainless steel known for its remarkable characteristics:
⚙️ High strength and hardness (treatable by heat to 44 Rc)
🔥 Ultimate tensile strength of 1,300 MPa (190,000 psi)
🛡️ Reasonable corrosion resistance
It’s the premium selection for domains where industrial performance is paramount:
✈️ Components of aerospace
⚗️ Equipment for chemical processing
🥡 Food processing machinery
🩺 Medical tools
⛽ Components of oil and gas
Mia Yu has in-depth knowledge in CNC machining, 3D printing, and sheet metal fabrication. She specializes in prototypes, bespoke components, and small-scale manufacturing. Their advanced systems guarantee that your designs are manufactured with unmatched precision.
Mia Yu
CNC Machining Expert
Specifications for Stainless Steel 17-4
Examine an extensive table of material properties containing physical, mechanical, electrical, and thermal characteristics for comprehensive analysis. This aids in the informed selection and evaluation of materials.
| Category | Property | Value | Unit |
|---|---|---|---|
| Chemical Composition | Carbon (C) | 0.0 - 0.07 | % |
| Chromium (Cr) | 15.00 - 17.00 | % | |
| Manganese (Mn) | 0.0 - 1.50 | % | |
| Silicon (Si) | 0.0 - 0.70 | % | |
| Phosphorous (P) | 0.0 - 0.04 | % | |
| Sulphur (S) | 0.0 - 0.03 | % | |
| Nickel (Ni) | 3.00 - 5.00 | % | |
| Copper (Cu) | 3.00 - 5.00 | % | |
| Molybdenum (Mo) | 0.0 - 0.60 | % | |
| Niobium (Nb) | 0.0 - 0.45 | % | |
| Iron (Fe) | Balance | ||
| Physical Properties | Density | 7.75 | g/cm³ |
| Thermal Expansion | 10.8 × 10-6 | /K | |
| Modulus of Elasticity | 196 | GPa | |
| Thermal Conductivity | 18.4 | W/m·K | |
| Electrical Resistivity | 0.8 × 10-6 | Ω·m | |
| Mechanical Properties | Solution Annealed (Tensile Strength) | 1200 Max | MPa |
| Solution Annealed (Hardness) | 360 Max | HB | |
| P800 (Proof Stress) | 520 Min | MPa | |
| P800 (Tensile Strength) | 800 - 950 | MPa | |
| P800 (Elongation A) | 18 Min | % | |
| P930 (Proof Stress) | 720 Min | MPa | |
| P930 (Tensile Strength) | 930 - 1100 | MPa | |
| P930 (Elongation A) | 16 Min | % | |
| P960 (Proof Stress) | 790 Min | MPa | |
| P960 (Tensile Strength) | 960 - 1160 | MPa | |
| P960 (Elongation A) | 12 Min | % | |
| P1070 (Proof Stress) | 1000 Min | MPa | |
| P1070 (Tensile Strength) | 1070 - 1270 | MPa | |
| P1070 (Elongation A) | 10 Min | % |
Our Blog
View our latest news
Stainless steel remains one of the most important and widely used materials in the design, construction, and manufacturing of products today. With its combination of strength, corrosion resistance, and...
Corrosion can be rather persistent and it will have a creeping effect on your working tools, household appliances and precious items. Those who do not want this to happen...
Understanding sulfuric acid density not only contributes to the field of science and industrial applications, but also helps prevent accidents and ensure accurate use. Due to its extensive use...
Titanium is well known for its extraordinarily high strength-to-weight ratio, making it indispensable in many applications today. Because it offers a lightweight yet strong material that does not corrode,...
One of the most widely used igneous rocks is granite, whose versatility and appeal primarily derive from its distinctive physical properties, most notably its density. Understanding granite density is...
Ice, whether it makes winter streets unpassable, creates the fantastic formations of glaciers, or adds a refreshing sound to a drink in the hot summer, plays an exciting role...
Silicon, the second-most-abundant element in the Earth’s crust, is a modern tech and industrial material. It is used in a wide variety of applications, from electronics to advanced materials;...

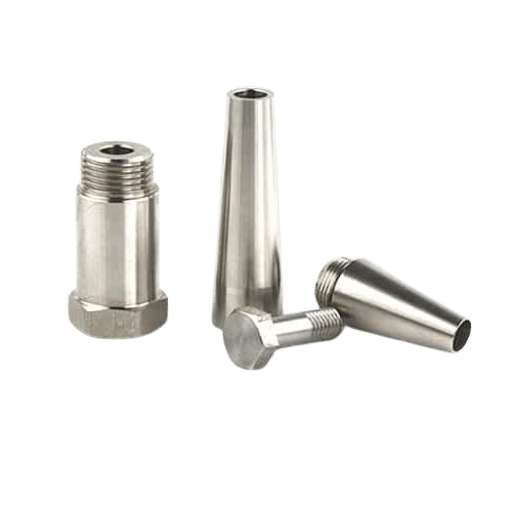

Get Stainless Steel 17-4 CNC machining parts from Baetro
