Titanium Grade 1
Titanium Grade 1: The material that delivers strength, versatility, and reliability! 💪✨
This form of unalloyed titanium is characterized by its:
✔️ Corrosion resistance
✔️ Weldability
✔️ Ductility for cold working and deep drawing
With the least quantity of interstitial components and ultimate tensile stress in comparison to other titanium grades, it is light, strong, and biocompatible—making it ideal for several sectors:
🌊 Marine applications
⚗️ Chemical processing
🏥 Medical Industry
Titanium Grade 1 keeps proving invaluable in a multitude of utilizations.
Mia Yu has in-depth knowledge in CNC machining, 3D printing, and sheet metal fabrication. She specializes in prototypes, bespoke components, and small-scale manufacturing. Their advanced systems guarantee that your designs are manufactured with unmatched precision.
Mia Yu
CNC Machining Expert
Specifications for Titanium Grade 1
Examine an extensive table of material properties containing physical, mechanical, electrical, and thermal characteristics for comprehensive analysis. This aids in the informed selection and evaluation of materials.
| Category | Properties | Metric | Imperial |
|---|---|---|---|
| Specifications | Titanium (Ti) | ≥ 99.1% | |
| Iron (Fe) | ≤ 0.20% | ||
| Oxygen (O) | ≤ 0.18% | ||
| Carbon (C) | ≤ 0.080% | ||
| Nitrogen (N) | ≤ 0.030% | ||
| Hydrogen (H) | ≤ 0.015% | ||
| Physical | Density | 4.51 g/cm³ | 0.163 lb/in³ |
| Melting Point | 1670°C | 3038°F | |
| Mechanical | Tensile Strength | 345 MPa | 50000 psi |
| Yield Strength | 220 MPa | 31900 psi | |
| Poisson's Ratio | 0.34 - 0.40 | 0.34 - 0.40 | |
| Elastic Modulus | 105 - 120 GPa | 15200 - 17400 ksi | |
| Elongation at Break | 35% | 35% | |
| Hardness (HV) | 115 | 115 | |
| Thermal | Thermal Expansion Coefficient (@0.000-100°C/32-212°F) | 8.60 µm/m°C | 4.78 µin/in°F |
| Thermal Conductivity | 21.97 W/mK | 152.5 BTU in/hr.ft².°F |
Our Blog
View our latest news
Stainless steel remains one of the most important and widely used materials in the design, construction, and manufacturing of products today. With its combination of strength, corrosion resistance, and...
Corrosion can be rather persistent and it will have a creeping effect on your working tools, household appliances and precious items. Those who do not want this to happen...
Understanding sulfuric acid density not only contributes to the field of science and industrial applications, but also helps prevent accidents and ensure accurate use. Due to its extensive use...
Titanium is well known for its extraordinarily high strength-to-weight ratio, making it indispensable in many applications today. Because it offers a lightweight yet strong material that does not corrode,...
One of the most widely used igneous rocks is granite, whose versatility and appeal primarily derive from its distinctive physical properties, most notably its density. Understanding granite density is...
Ice, whether it makes winter streets unpassable, creates the fantastic formations of glaciers, or adds a refreshing sound to a drink in the hot summer, plays an exciting role...
Silicon, the second-most-abundant element in the Earth’s crust, is a modern tech and industrial material. It is used in a wide variety of applications, from electronics to advanced materials;...

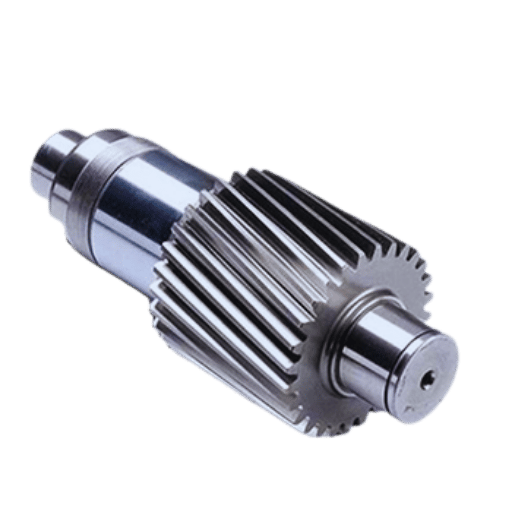

Get Titanium Grade 1 CNC machining parts from Baetro
