Titanium Grade 2
Titanium Grade 2 is a combination of alloy that is seen as the baseline and benchmark material due to its great resistance and formability as well as high strength-to weight ratio. This property makes the grade extremely useful for industries ranging from medical to mechanical.
💡 Key Benefits:
✔️Reasons ranging from corrosion offered in chloride seawater to biocompatibility are of immense importance to medical use.
✔️ Reserved tesion and compression while changing spatial coordinates applicable to weight enhancer materials.
📌 Where You’ll Find Titanium Grade 2 in Action:
🌊 Marine applications – In contrast for tending to high loads vertically submerged parts.
⚗️ Chemical processing – Performs greatly under circumstances with high levels of corrosion as well as pressure.
🏥 Medical industry – Regular implants and devices exemplary of next-generation supprt materials.
✈️ Aerospace industry – Areas with performance weight bounds.
Mia Yu has in-depth knowledge in CNC machining, 3D printing, and sheet metal fabrication. She specializes in prototypes, bespoke components, and small-scale manufacturing. Their advanced systems guarantee that your designs are manufactured with unmatched precision.
Mia Yu
CNC Machining Expert
Specifications for Titanium Grade 2
Examine an extensive table of material properties containing physical, mechanical, electrical, and thermal characteristics for comprehensive analysis. This aids in the informed selection and evaluation of materials.
| Category | Property | Metric | English | Comments |
|---|---|---|---|---|
| General Properties | Density | 4.51 g/cc | 0.163 lb/in³ | |
| Mechanical Properties | Hardness, Knoop | 170 | 170 | |
| Hardness, Rockwell B | 80 | 80 | ||
| Hardness, Vickers | 145 | 145 | ||
| Tensile Strength, Ultimate | 344 MPa | 49900 psi | ||
| Tensile Strength, Yield | 275 - 410 MPa | 39900 - 59500 psi | Minimum yield strength is 275 MPa (40 ksi). | |
| Elongation at Break | 20% | 20% | ||
| Reduction of Area | 35% | 35% | ||
| Modulus of Elasticity | 105 GPa | 15200 ksi | In tension. | |
| Compressive Modulus | 110 GPa | 16000 ksi | ||
| Poisson's Ratio | 0.37 | 0.37 | ||
| Izod Impact | 114 - 171 J | 84.1 - 126 ft-lb | ||
| Fatigue Strength (1E+7 cycles) | 300 MPa | 43500 psi | Unnotched | |
| Fatigue Strength (30,000 cycles) | 425 MPa | 61600 psi | Unnotched | |
| Fracture Toughness | 66 MPa-m½ | 60.1 ksi-in½ | Annealed | |
| Shear Modulus | 45 GPa | 6530 ksi | ||
| Electrical Properties | Electrical Resistivity | 5.2e-005 ohm-cm | 5.2e-005 ohm-cm | |
| Thermal Properties | Heat of Fusion | 325 J/g | 140 BTU/lb | High purity titanium. |
| CTE, Linear (0-100°C) | 8.6 µm/m-°C | 4.78 µin/in-°F | Higher perpendicular to the c-axis at elevated temperature. | |
| CTE, Linear (0-315°C) | 9.2 µm/m-°C | 5.11 µin/in-°F | Average over the range. | |
| CTE, Linear (0-540°C) | 9.7 µm/m-°C | 5.39 µin/in-°F | Higher perpendicular to the c-axis. | |
| Specific Heat Capacity | 0.523 J/g-°C | 0.125 BTU/lb-°F | At 540°C, value increases to 0.67 J/g-°C. | |
| Thermal Conductivity | 16.4 W/m-K | 114 BTU-in/hr-ft²-°F | Annealed. | |
| Melting Point | 1665 °C | 3030 °F | Liquidus temperature. | |
| Beta Transus | 913 °C | 1680 °F | ||
| Optical Properties | Emissivity (0-1) | 0.3 | 0.3 | High purity titanium at 710°C. |
| Reflection Coefficient (0-1) | 0.56 | 0.56 | High purity titanium for visible light. | |
| Other Properties | Corrosion Resistance | Exceptional | Exceptional | Often exceeds stainless steel in various environments. |
| Biocompatibility | Excellent | Excellent | Ideal for medical and biological applications. |
Our Blog
View our latest news
Stainless steel remains one of the most important and widely used materials in the design, construction, and manufacturing of products today. With its combination of strength, corrosion resistance, and...
Corrosion can be rather persistent and it will have a creeping effect on your working tools, household appliances and precious items. Those who do not want this to happen...
Understanding sulfuric acid density not only contributes to the field of science and industrial applications, but also helps prevent accidents and ensure accurate use. Due to its extensive use...
Titanium is well known for its extraordinarily high strength-to-weight ratio, making it indispensable in many applications today. Because it offers a lightweight yet strong material that does not corrode,...
One of the most widely used igneous rocks is granite, whose versatility and appeal primarily derive from its distinctive physical properties, most notably its density. Understanding granite density is...
Ice, whether it makes winter streets unpassable, creates the fantastic formations of glaciers, or adds a refreshing sound to a drink in the hot summer, plays an exciting role...
Silicon, the second-most-abundant element in the Earth’s crust, is a modern tech and industrial material. It is used in a wide variety of applications, from electronics to advanced materials;...

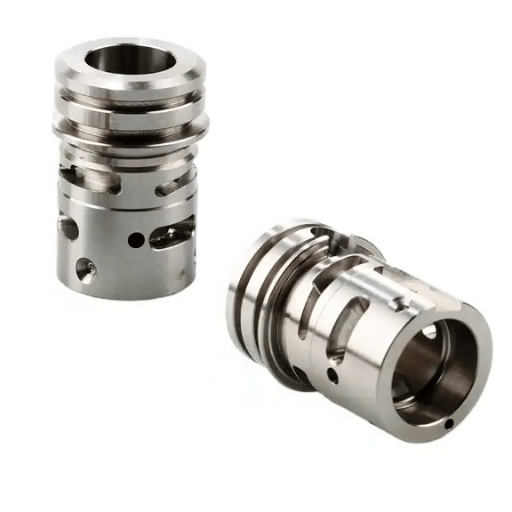

Get Titanium Grade 2 CNC machining parts from Baetro
