Ketron™ 1000 Plastic: Natural Ketron® PEEK Rod & Sheet

KETRON™ 1000 Natural plastic rod & sheet is considered a more high-performance solution for an industry requiring durability, reliability, and versatility. Crafted from polyetheretherketone (PEEK), the material is renowned for providing mechanical strength, heating stability, and chemical resistance, hence being chosen in various scoring applications. Be it aerospace, medical, automotive, or industrial manufacturing, KETRON™ 1000 Natural will give the utmost performance to take your projects a notch higher.

In this article, we will discuss what makes KETRON™ 1000 Natural unique and advantageous. We will also discuss its technical features and properties, some common applications, and why this plastic is regarded as a professional-grade substance that is highly relied upon. Join us as we explore how this advanced material can solve challenging problems and offer innovative solutions for your manufacturing and design requirements.

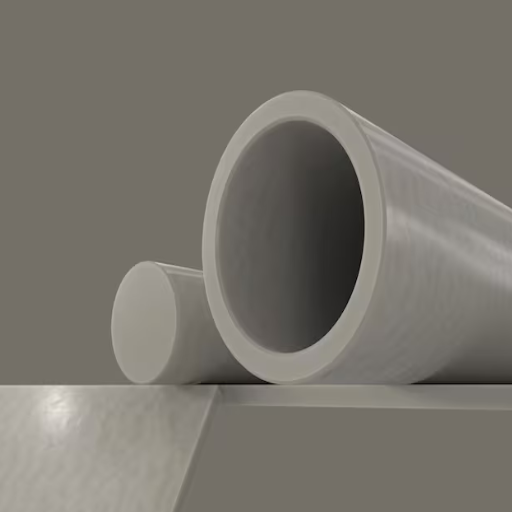

Introduction to KETRON® PEEK

Considering its properties, judgments could be made on KETRON® PEEK being one of the best thermoplastics because of its exceptional strength, durability, temperature, and chemical resistance. It finds applications in aerospace, medical, and automotive industries, as it retains mechanical properties under harsh working environments. Additionally, this material is lightweight and has good wear resistance, and can be used for components demanding reliability in functioning and precision.

What is KETRON® PEEK?

KETRON® PEEK is an acronym for KETRON® Polyetheretherketone, known as a high-end engineering plastic and regarded as a thermoplastic polymer. Some properties set apart this plastic with a high strength-to-weight ratio, strong chemical resistance, temperature stability (frequently exceeding 480°F/250°C), and other special features that make KETRON® PEEK a versatile material. It has been endowed with low moisture absorption and sound electrical insulation. Hence, this material can find applications requiring the highest degree of precision and reliability, such as aerospace, medical, automobile, and electronics. Bearings, seals, insulators, and gears are some of the component names produced using KETRON® PEEK materials, needing high precision and reliability. The best mechanical properties it provides, along with endurance in harsher environments, pave the way for producing engineering solutions for tomorrow.

Properties of KETRON® PEEK

KETRON® PEEK (Polyetheretherketone) finds itself in the relatively rare group of engineering plastics whose mechanical, thermal, and chemical properties are exceptionally well balanced. Its main properties include:

• High Temperature Resistance: KETRON® PEEK can operate continuously at a temperature up to 260°C (500°F) without compromising its mechanical integrity, making it useful in extreme thermal environments.
• Superior Mechanical Strength: This material is resistant to tensile forces, stiffness, and dimensional stability even at elevated temperatures, making it desirable for precision-engineered applications. It possesses approximately 97 MPa (14,000 psi) tensile strength and up to 140 MPa (20,300 psi) compressive strength.
• Chemical Resistance: KETRON® PEEK resists chemical interactions almost perfectly, including resistance to hydrocarbons, acids, alkalies, and even high-pressure steam, illustrating its utility in corrosive environments.
• Low Water Absorption: KETRON® PEEK absorbs practically no moisture (0.1% at water saturation), ensuring that components remain dimensionally stable and keep their mechanical properties even in humid conditions.
• Wear Resistance and Low Friction: PEEK is among the best materials for resisting wear and abrasion and has a low coefficient of friction. Therefore, it can be used in applications that involve constant contact for a long time, such as bushings, seals, or sliding components.
• Electrical Insulation: KETRON® PEEK exhibits good dielectric properties, ensuring its use as an electrical insulator, particularly in hot or high-frequency applications.
• Biocompatibility (selected grades): Selective grades of KETRON® PEEK can be suitable for FDA-compliant medical and food applications, particularly in forming implants or surgical instruments.

When developing advanced solutions, these properties offer a premier option for KETRON® PEEK whenever reliability, durability, and performance are essential for demanding applications.

Applications of KETRON® PEEK

The superior qualities of KETRON® PEEK make it a favorite in various high-performance industries. Here are five core application areas where KETRON® PEEK showcases its versatility and superior performance:

• Aerospace Components

With a good strength-to-weight ratio and the ability to resist heat, it finds applications in aerospace, such as brackets, bushings, and cable insulation. In these applications, it imparts durability while shedding weight from components of vital importance.

• Medical Devices and Implants

FDA-grade KETRON® PEEK is used to manufacture surgical instruments, dental implants, and spinal implants. Its biocompatibility and sterilization methods allow it to be used in medical applications.

• Automotive Parts

KETRON® PEEK finds application in automotive parts that benefit pump performance: engine parts, transmission components, and thrust washers. Resistant to heat and brake wear, KETRON® PEEK fits well within a heat- and wear-intensive environment.

• Semiconductor Manufacturing

Chemical resistance and dimensional stability in high-temperature environments make this material a must in semiconductor manufacturing. KETRON® PEEK is used for wafer handling, test sockets, and other fine-precision parts.

• Industrial Equipment

KETRON® PEEK is used industrially in gears, seals, and bearings. It provides excellent wear resistance while working at high pressure and high friction, thus minimizing maintenance and operational downtime.

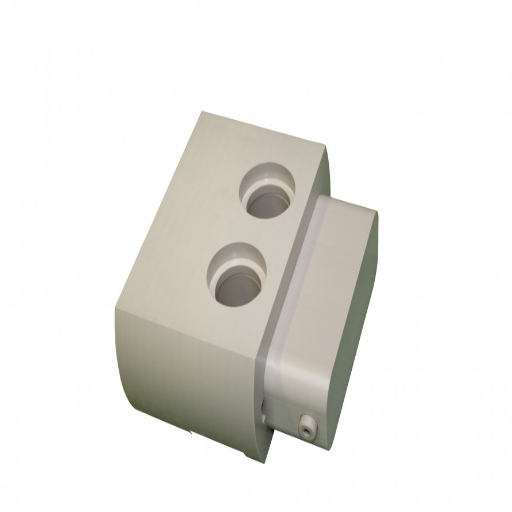

KETRON™ 1000 Overview

A special grade of unfilled PEEK material, KETRON™ 1000, is a pleasing combination of high mechanical strength, excellent chemical resistance, and thermal properties. It is therefore used in applications requiring all kinds of wearability in a hostile environment. The use of this grade is FDA-approved, allowing it to be used in food, beverage, and medical-related industries. Their reliable performance remains consistent across different uses in extreme temperatures and conditions.

Specifications of KETRON™ 1000

KETRON™ 1000 is characterized by a remarkable set of specifications, placing it in an unparalleled position in high-performing applications. Some notable properties and specs include:

1. Material composition: Unfilled polyetheretherketone (PEEK) base polymer.
   Temperature Check: It can be used continuously up to about 480°F (250°C) while retaining excellent mechanical properties at elevated temperatures.
2. Chemical modus: Extraordinary mode of resistance toward pretty much the majority of chemicals, including hydrocarbons, acids, and bases.
3. Mechanical modulus: Great tensile and compressive strength would hold it together if the loads are imposed.
4. FDA Formal: Accepted in the food and medical industries for the hygiene and demanding environment.
5. Moisture absorption: Minimum, thus ensuring dimensional stability in high-humidity or wet environments.
6. Wear resistance: It shows low-friction characteristics and is suitable for applications with repeated motion and wear resistance.
7. Electrical insulating: Provides fine dielectric characteristics for use in electrical and electronic operations.

All these properties prove KETRON™ 1000 to be a truly versatile and reliable material in very demanding environments in the aerospace, automotive, medical, food processing, and oil and gas industries.

Comparison with Other KETRON® Products

KETRON® 1000 PEEK has superior elongation and toughness compared to other KETRON® products, with other versions like CA30, GF30, and HPV reinforced for particular applications.

Key Point	KETRON® 1000	CA30	GF30	HPV
Base	Unfilled	Carbon-reinforced	Glass-reinforced	Bearing grade
Strength	High toughness	High stiffness	High stability	Low friction
Use	General purpose	Pumps, seals	Structural	Bearings
Temp.	Up to 250°C	High resistance	High resistance	High resistance
Special	FDA compliant	Thermal conductivity	Reduced expansion	Wear-resistant

Benefits of Using KETRON™ 1000

1. Excellent Wear Resistance: The material offered under the name KETRON™ 1000 is hard-wearing, thus being employed in the manufacture of components that are subjected to continual friction and wear, such as bearings and bushings.
2. High Chemical Resistance: It bestows resistance to acids, solvents, and oils, providing shrink-proof performance in harsh environments.
3. Wide Operating Temperature Range: The material can withstand nearly extreme temperatures, from cryogenic temperatures up to about 500°F (260°C). That is why it finds application in so many industrial applications.
4. Superior Dimensional Stability: Very low moisture absorption guarantees precision and stability of components in wet or even humid conditions.
5. Good Electrical Properties: Due to its superior dielectric properties, KETRON™ 1000 can be used for electrical insulation applications, contributing to the safety and efficiency of electrical systems.

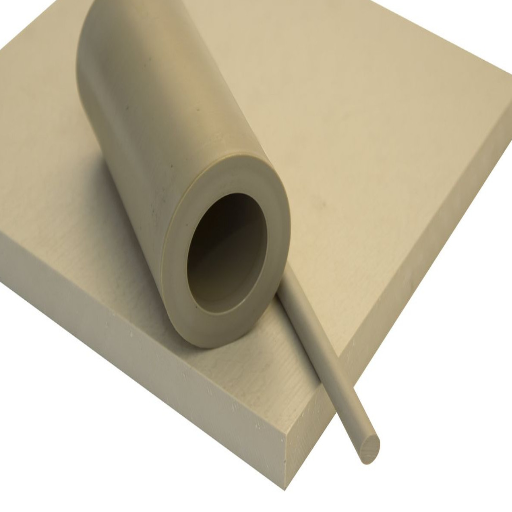

KETRON™ 1000 Rods and Sheets

KETRON™ 1000 rods and sheets are versatile stock shapes that mold to demanding industrial applications. These materials show high mechanical strength, excellent wear resistance, and outstanding dimensional stability, thus making them the perfect choice to be precisely machined into components. Their applications range across aerospace, automotive, and electronics as they come through when reliability and performance under extreme conditions are demanded.

Features of KETRON™ 1000 Rods

• Mechanical High Strength

Ensuring mechanical strength and durability, KETRON™ 1000 rods provide for reliability under adverse environmental conditions.

• Wear Resistance

The material exhibits the best wear resistance and is thus suitable for any application subjected to heavy friction or abrasion.

• Dimensional Stability

These rods are dimensionally extremely stable and retain precise shapes, even when affected by extreme environments or severe operational conditions.

• Broad Thermal Range

KETRON™ 1000 rods work on a wide range of temperatures, keeping their properties both in high and low-temperature conditions.

• Chemical Resistance

One of the most sought properties of these rods is their stronger resistance to many chemicals, which ensures their integrity and performance in chemically aggressive conditions.

How to Choose Between Rods and Sheets

When deciding between rods and sheets, the choice largely hinges on the specific application and design requirements. Rods are ideal for components requiring a circular or cylindrical shape, such as bushings, spacers, or rollers. Their uniform diameter and durability make them well-suited for precision-machined parts. On the other hand, sheets provide versatility for flat or large-surface applications, including panels, gaskets, and liners. They allow a greater range of cutting and shaping options, accommodating complex geometries.

Consider the required dimensions, mechanical properties, and environmental conditions. If the project demands high strength in narrow, elongated structures, rods may be more appropriate. Conversely, sheets are a better fit for components that need broad, flat coverage or intricate shapes. Additionally, evaluating cost efficiency and material waste during the machining process can help guide your decision.

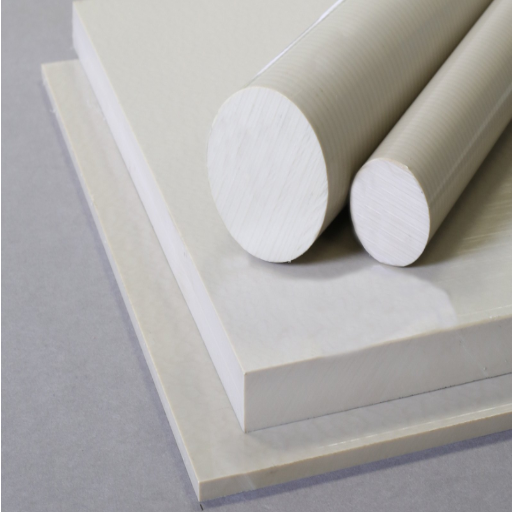

Applications of KETRON™ 1000 in Various Industries

KETRON™ 1000 is a high-performance polyetheretherketone (PEEK) material used in different industries due to its mechanical strength, chemical resistance, and thermal stability.

• Aerospace: Used for lightweight structural components and engine parts that require high strength and durability under extreme temperatures.
• Medical: Utilized in surgical instruments, implants, and medical devices due to its biocompatibility and resistance to repeated sterilization cycles.
• Automotive: This material is ideal for wear-resistant components such as gears, bushings, and seals that operate in high-stress and high-temperature conditions.
• Electronics: Applied in electrical insulators, connectors, and other electronic components where reliability and resistance to heat are essential.
• Industrial Manufacturing: Used in machinery parts and equipment requiring resistance to chemicals, wear, and high operating temperatures.

This array of applications implies the adaptability and reliability of the KETRON™ 1000 in adverse conditions.

Aerospace Applications

Due to its exceptional properties such as high thermal stability, chemical resistance, and high strength-to-weight ratio, KETRON™ 1000 finds applications in aerospace operations. Such properties make it desirable for aerospace components of utmost importance in demanding environments. The following are a few examples of how KETRON™ 1000 is used in aerospace:

• Engine Components: Provide durability and can resist extreme temperatures and high thermal loads for reliable performance.
• Structural Components: These are used in airframe parts that require mechanical strength and stiffness, with weight minimization.
• Insulation Systems: It works as an insulator in electronic systems and wiring and has excellent dielectric properties at high altitudes.
• Bearing and Wear Parts: Provides precision bearings and wear-resistant sliding elements under harsh conditions.
• Fuel System Parts: Provides chemical resistance and integrity to parts exposed to jet fuels and hydraulic fluids.

Hence, the above list demonstrates the immense application scope of KETRON™ 1000 in improving the performance, safety, and reliability of aerospace systems.

Medical Applications

The material KETRON™ 1000 PEEK has the flexibility of being widely used in medical applications because of the properties of biocompatibility, resistance to sterilization, and mechanical properties. These excellent properties make them suitable for many demanding applications. Here are some of the medical uses of KETRON™ 1000 PEEK:

• Surgical Instruments: Surgical instruments are lightweight components that satisfy strength requirements and maintain their integrity during multiple sterilization cycles.
• Implantable Devices: These devices, which are used for spinal cages, dental implants, and bone fixations, are considered fully biocompatible and non-toxic.
• Orthopedic Components: These are used for joint replacement bearings and trauma fixation devices because of their superior wear resistance and fatigue strength.
• Diagnostic Instruments: These are used in parts of MRI-compatible diagnostic instruments by their non-magnetic and radiolucent properties.
• Endoscopic Devices: This material is well suited for minimally invasive surgical tools due to its high precision molding capabilities and chemical resistance.

All these applications highlight the role of KETRON™ 1000 PEEK in medical advancement and offering sturdy solutions for healthcare providers and patients.

Reference Sources

1. Title: Rotary Friction Welding of Polyetheretherketone Biopolymer Rods Using Variable Rotational Speed
   Authors: C. Kuo, Hua-Xhin Liang, Song-Hua Huang, Shih-Feng Tseng
   Publication Date: October 1, 2023
   Summary: This study investigates the rotary friction welding (RFW) of PEEK rods using variable rotational speeds. The research aims to enhance the mechanical properties of the welded joints and reduce cycle times in the welding process.
   Methodology: The authors employed a three-stage transformation of rotational speed during welding. They measured the welding parts’ bending strength and compared it to conventional fixed-speed welding. The results indicated a significant increase in bending strength (about 140%) and a reduction in cycle time (approximately 6%) using the variable speed approach.
2. Title: Characterization of the Polyetheretherketone Weldment Fabricated via Rotary Friction Welding
   Authors: C. Kuo, Hua-Xhin Liang, Song-Hua Huang
   Publication Date: November 27, 2023
   Summary: This paper focuses on the mechanical properties of PEEK weldments produced through rotary friction welding. The study aims to assess how different burn-off lengths affect the mechanical properties of the welded parts.
   Methodology: The authors varied the burn-off lengths during welding and evaluated the mechanical properties, including bending strength. They found that an optimal burn-off length of 1.6 mm significantly improved the bending strength of the welded parts. The study also compared the performance of RFW with laser welding, highlighting the advantages of RFW in terms of mechanical properties.
3. Title: Experimental Investigation of a Large Tilting-Pad Journal Bearing With a Direct-Bonded Sub-Millimeter PEEK Lining
   Authors: Michael Stottrop, Alexander Engels, Christoph Weißbacher, Beate Bender
   Publication Date: June 26, 2023
   Summary: This study presents experimental results for a tilting-pad journal bearing lined with a direct-bonded sub-millimeter PEEK layer. The research aims to evaluate the performance of PEEK as a lining material in bearing applications.
   Methodology: The authors tested a 500 mm tilting-pad journal bearing, measuring fluid film pressure and the distance between the shaft and the pads. The results showed that the PEEK-lined pads exhibited lower temperatures and reduced axial deflection compared to traditional Babbitt-lined pads, indicating improved performance.

4. Top PEEK CNC Machining Parts Manufacturer And Supplier In China

Frequently Asked Questions (FAQs)

Q: What is Ketron® Peek 1000, and how does it compare to other plastics?

A: Ketron® Peek 1000 is a high-performance thermoplastic known for its excellent mechanical properties and thermal stability. It belongs to the family of PEEK materials, which offer chemical and hydrolysis resistance similar to PPS, making them suitable for various industrial applications. Ketron Peek offers the highest elongation and toughness, distinguishing it from many other plastics. This grade is ideal for applications that require durability and reliability in hostile environments. Its ductility and inertness make it a preferred choice for professional plastics applications, providing long-lasting performance. Ketron Peek is often used in aerospace, automotive, and medical industries due to its superior qualities.

Q: What are the applications of natural Ketron Peek?

A: Natural Ketron Peek is widely used across various applications and industries due to its remarkable properties. It is particularly effective in producing seal components that withstand high temperatures and aggressive chemicals. Natural Ketron Peek can be utilized in instrument applications with critical precision and reliability. This material is also recognized for its ability to fit within various manufacturing processes, including machining into multiple shapes like rods, sheets, and plates. Its performance at temperatures of up to 480°F allows it to be employed in demanding environments. Additionally, the toughness of all materials in the PEEK family ensures that natural Ketron Peek maintains its integrity in challenging conditions.

Q: How does Ketron Peek perform under extreme temperatures?

A: Ketron Peek is known for its exceptional thermal stability, making it suitable for applications where temperatures can reach extreme levels. This material can be used continuously to 480°F without losing its structural integrity, which is a significant advantage in industries such as aerospace and automotive. Its high melting point also contributes to its performance in hostile environments. Ketron Peek exhibits a V-O flammability rating and very low smoke emission when exposed to flame, reducing safety hazards in high-temperature scenarios. The combination of thermal resistance and mechanical strength ensures that components made from Ketron Peek remain reliable even under severe conditions, making it an ideal choice for critical applications.

Q: What are the benefits of using professional plastics for Ketron Peek products?

A: Using professional plastics for Ketron Peek products ensures high-quality manufacturing and material selection. Companies specializing in professional plastics often have access to a range of standard sizes and shapes, including tubing and tubular bars, which can be customized for various applications. These suppliers also provide guidance on the best grades for specific needs, such as the general-purpose polyetheretherketone grade that offers the highest elongation and toughness. Additionally, professional plastics manufacturers are knowledgeable about the chemical and hydrolysis resistance of materials like Ketron Peek, helping clients select the right product. This expertise ensures that components meet industry standards and perform reliably in their intended applications.

Q: What makes PEEK shapes known for their versatility?

A: PEEK shapes are known for their versatility due to their wide range of applications and superior material properties. These shapes can be produced in various forms such as rods, sheets, plates, and custom geometries, allowing for extensive use across different industries. The ability to manufacture PEEK in different color variations also adds to its aesthetic and functional appeal. Moreover, PEEK shapes encompass a range of standard sizes, making it easier for manufacturers to source the materials they need for specific projects. The toughness of all materials in the PEEK family contributes to their effectiveness in demanding applications, from automotive to medical devices. This versatility makes PEEK a preferred choice for engineers and designers looking for reliable performance in challenging environments.
